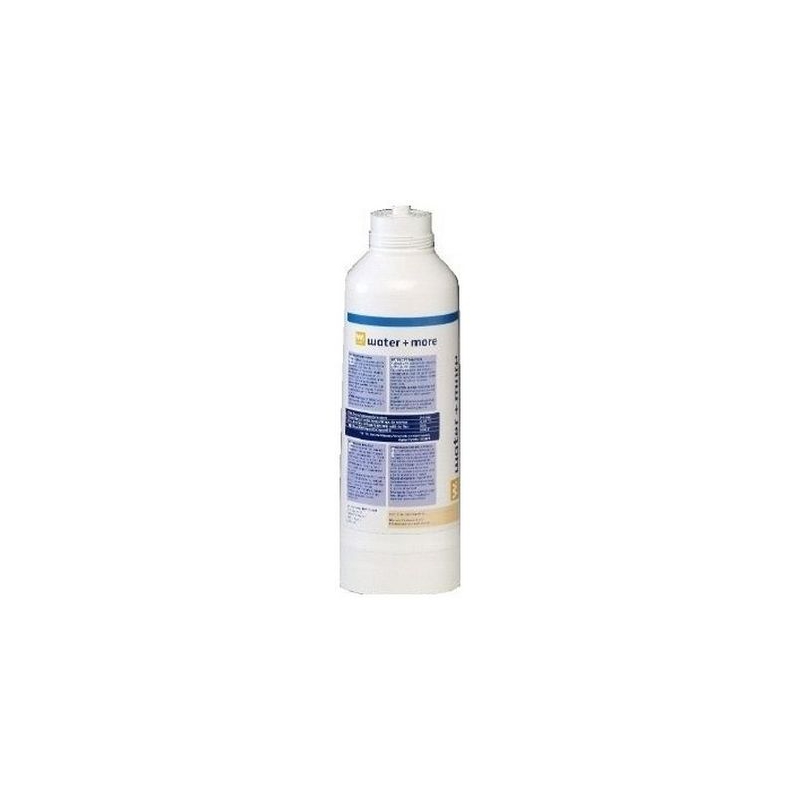

PATRONE BESTMAX SERI M 3800L

Technical characteristics

Connection thread (in / out): 3/8 "

Inlet pressure, min. - max. In bars: 2 - 8

Water temperature, min.-max., In ° C: 4 - 30

Ambient temperature, min.-max., In ° C: 4 - 40

Total height without bracket in mm: 475

Overall height with stirrup in mm: 500

Connection height in mm: 425

Distance to the ground in mm: 65

Mounting length in mm: 125

Filter cartridge Ø in mm: 115

Approximate weight in kg (dry / wet): 2.1 / 3.2

Filtration capacity in liters (10KH): 3,800
